TD3-D Bussmann NH Fuse Base
| Product Name | Eaton Bussmann series low voltage NH fuse base |
| Catolog Number | TD3-D |
| Rated Amperage | 630A |
| Rated Voltage | 690V |
| Datasheet | |
| Product Length | 220mm |
| Product Height | 239mm |
| Product Width | 138mm |
| Product Weight | 2080g |
| Fuse Size | NH3 |
| Package Type | Standard |

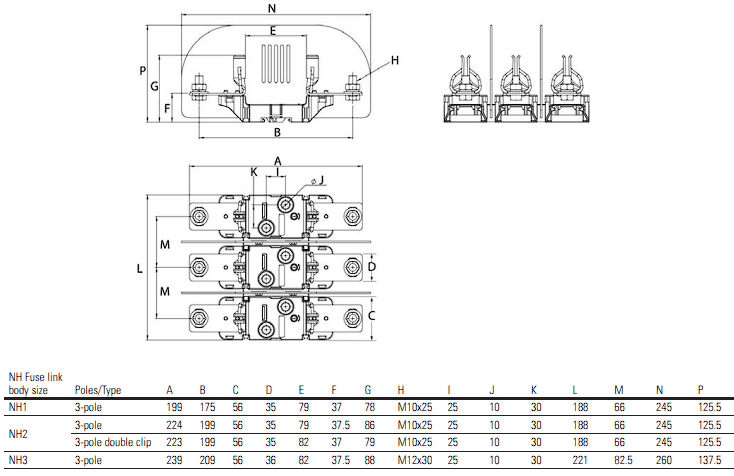

Dimensions (mm) 3-pole, sizes 1, 2 and 3
What does the NH stand for in fuses?
This standard apply to high breaking capacity fuses, more commonly known as NH type fuses (the name comes from its German acronym, Niederspannungs-Hochleistungs-Sicherungen, o NH-Sicherungen), and to a variant which we will call NHL Type.
