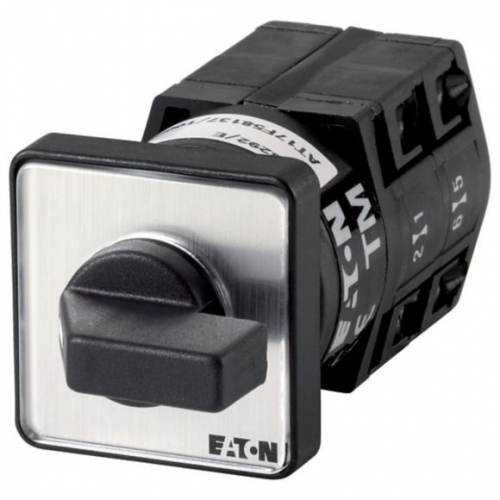

TM-2-8221/EZ - Changeoverswitches, TM, 10 A, centre mounting,
2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8221
General specifications
Product name
Eaton Moeller® series TM Changeover switch
Part no.
TM-2-8221/EZ
EAN
4015080151975
Product Length/Depth
87 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.043 kilogram
Certifications
IEC/EN 60947-3
UL
CE
VDE 0660
IEC/EN 60947-5-1
CSA
UL report applies to both US and Canada
IEC/EN 60947
UL Category Control No.: NLRV
Certified by UL for use in Canada
CSA-C22.2 No. 94
UL File No.: E36332
CSA-C22.2 No. 14-05
UL 508
UL
CE
VDE 0660
IEC/EN 60947-5-1
CSA
UL report applies to both US and Canada
IEC/EN 60947
UL Category Control No.: NLRV
Certified by UL for use in Canada
CSA-C22.2 No. 94
UL File No.: E36332
CSA-C22.2 No. 14-05
UL 508
Product Tradename
TM
Product Type
Changeover switch
Product Sub Type
None
Features & Functions
Enclosure material
Plastic
Fitted with:
Black thumb grip and front plate
Inscription
1-2
Number of poles
2
General information
Degree of protection
IP65
Degree of protection (front side)
IP65
NEMA 12
NEMA 12
Lifespan, mechanical
1,000,000 Operations
Model
Reverser
Mounting method
Center mounting
Mounting position
As required
Number of contact units
2
Operating frequency
1200 Operations/h
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Suitable for
Front mounting
Switching angle
60 °
Type
Changeover switch
