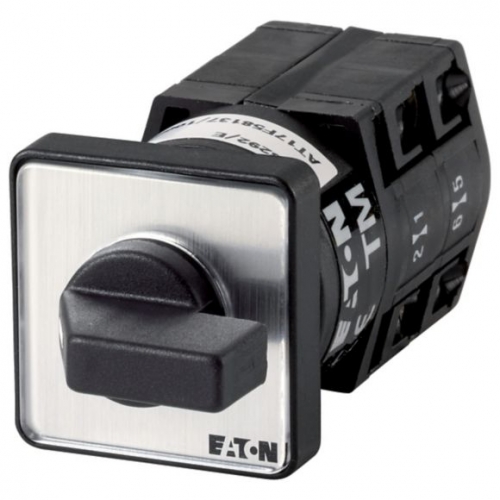

TM-2-8177/E - Spring-return switch,
TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained,
With 0 (Off) position, with spring-return from both directions, START>1-0-2
General specifications
Product name
Eaton Moeller® series TM Insulated enclosure
Part no.
TM-2-8177/E
EAN
4015080108085
Product Length/Depth
74 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.04 kilogram
Certifications
CE
UL 508
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL
CSA
UL File No.: E36332
Certified by UL for use in Canada
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 14-05
UL Category Control No.: NLRV
IEC/EN 60947-3
IEC/EN 60947
UL 508
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL
CSA
UL File No.: E36332
Certified by UL for use in Canada
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 14-05
UL Category Control No.: NLRV
IEC/EN 60947-3
IEC/EN 60947
Product Tradename
TM
Product Type
Insulated enclosure
Product Sub Type
None
Features & Functions
Fitted with:
0 (off) position
Black thumb grip and front plate
Black thumb grip and front plate
