GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton Bussmann series PDBFS power distribution block
CATALOG NUMBER
PDBFS377
UPC
051712659901
PRODUCT LENGTH/DEPTH
4.6 in
PRODUCT HEIGHT
2.94 in
PRODUCT WIDTH
1.86 in
PRODUCT WEIGHT
0.74 lb
WARRANTY
Not Applicable
COMPLIANCES
Contact factory
RoHS Compliant
RoHS Compliant
CERTIFICATIONS
Contact Manufacturer
ELECTRICAL RATING
AMPERAGE RATING
570A
SHORT-CIRCUIT RATING
SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
VOLTAGE RATING
600 Vac, 600 Vdc
PHYSICAL DETAILS
MATERIAL
Tin plated aluminum connectors
TYPE
Power distribution block
GENERAL INFORMATION
MOUNTING
DIN rail, panel
SPECIAL FEATURES
IP-20 Finger-safe
Related Models
| PDBFS204 |
| PDBFS220 |
| PDBFS303 |
| PDBFS330 |
| PDBFS377 |
| PDBFS500 |
| PDBFS504 |
1, What's the bussmann fuse this power distribution block is mating?
LPN-RK (250 V)
LPS-RK (600 V)
FRN-R (250 V)
FRS-R (600 V)
JJN (300 V)
JJS (600 V)
2, What's this power distribution block ratings?
• Volts:
• 600 V (UL)
• 690 V (IEC)
• 1000 V (self-certified)
• Amps: 175 to 760 A
• SCCR: 200 kA

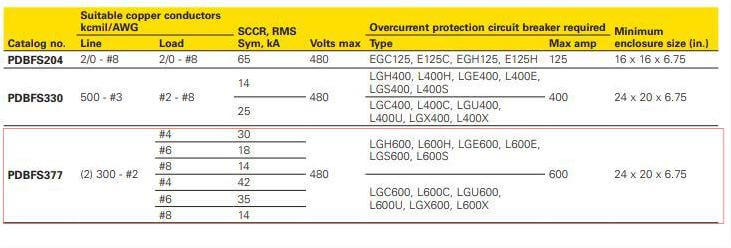

3, What's the Eaton circuit breaker this power distribution block mate with?
SCCR: 200 kA (8 To 4 AWG)
100 kA (14 To 4 AWG),
DIN rail, panel
Bussmann Power Distribution Block PDBFS Series commanly has 12-16 weeks lead time.The origin country is Mexico. You can contact us for the inventory and Technical Support(e.g., weight, dimension, material, certification, cross reference.,etc)
