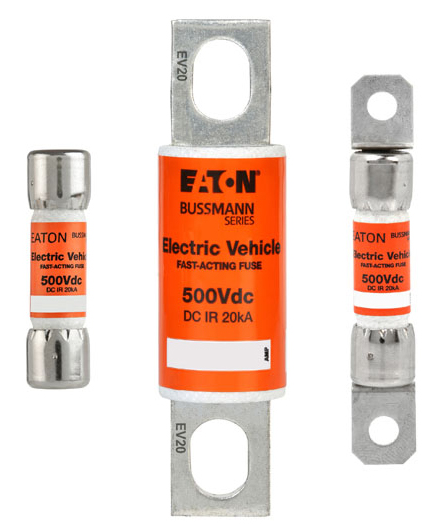

BUSSMANN Special fuses for electric vehicles
DC500V-DC1000V Famous manufacturers such as Ford, BMW, and Audi are already cooperating
Electric vehicle power fuses —500 Vdc, 50-400 A
| Product Name | Eaton Bussmann series EV fuse |
| Catolog Number | EV30-400 |
| Rated Amperage | 40A |
| Rated Voltage | 500V |
| Datasheet | |
| Product Height | 30mm |
| Product Length | 110mm |
| Product Width | 30mm |
| Product Weight | 0.15kg |
| Class | EV |
| Voltage Type | DC |
| Suitable For | Electric Vehicle |
| Connection | Bolted |
| Breaking Capacity | 20kA |
| 3D Model; CAD | Contact us |
| Compliance | RoHS Compliant |
Fuse Ratings
•Volts - 500 Vdc
•Amps – 50-400 A
•Interrupting rating
•Max DC – 20 kA
•Min DC 200%
Packaging
• 20 mm fuses: 250 fuses per box
• 25 mm fuses: 100 fuses per box
• 30 mm fuses: 100 fuses per box
Fuse Cross Reference:
| Bussmann | Mersen |
| EV20-50 | MEV55C |
Family fuses:
fuse PN | fuse Description |
EV30-200 | Bussmann EV Fuse 200A 500VDC S30 |
EV30-225 | 225A 500VDC fuse fast blown |
EV30-250 | EV Fuse 250A 500VDC semiconductor fuse |
EV30-300 | 500VDC 300A EV Fuse |
EV30-350 | Bussmann Fuse 500VDC 350A Diameter 30mm |
EV30-400 | 5000VDC Fuse 400A S30 fast acting |
What's the EV fuse voltage?
70VDC_EVH series
500VDC_ EV10, EV20, EV30, EV40, EV60 series;
800VDC_170M series;
